Audiotec Fischer AMI Tuning kit

4990.00kr

Lägsta pris senaste 30 dagarna: 4990.00kr.

The complete solution for in-car signal and acoustic measurement
The AMI Tuning Kit is a fully equipped measurement suite that combines the professional-grade AMI interface with a selection of premium accessories, offering everything required for precise signal and acoustic analysis in modern DSP-driven sound systems. Developed as a comprehensive, ready-to-use package, it’s the perfect solution for those who demand maximum accuracy, seamless integration, and flexible mobile use. At its heart: the AMI – engineered to work in perfect harmony with Audiotec Fischer’s DSP PC-Tool software, and enhanced by intelligent accessories for real-world measurement scenarios.

High-precision acoustic and signal measurement – anywhere you need it
The AMI serves as the central measurement hub, providing all relevant connections for a wide range of electrical and acoustic analysis tasks. Included in the kit is the renowned Beyerdynamic MM-1 – a precision-calibrated condenser measurement microphone „Made in Germany“, optimized for in-car measurements with a linear frequency response at 90°. The dedicated line input with switchable sensitivity (max. 1 V or 40 V) ensures accurate analysis of both low- and highlevel signals. Stereo signal output is available via RCA or optical digital connection for direct playback into a DSP. The integrated loopback function opens up advanced measurement options, such as precise phase response and more complex signal path evaluations.

Made to match: Seamless integration with DSP PC-Tool
Developed for full compatibility with the Audiotec Fischer DSP PC-Tool, the AMI becomes a powerful measurement device that unlocks the full potential of our software‘s tuning features. This includes the Advanced Input Signal Analyzer (AISA) for the detection and correction of factory-applied EQ curves, time alignment and allpass filters, as well as Real-Time Analyzer (RTA) support for precise frequency response measurements and automated tuning via our proprietary TuneEQ algorithm. The AMI also supports Automatic Time Measurement (ATM) for fully automated speaker delay calibration – delivering perfect timing and imaging across all channels.

The all-in-one measuring suite – with premium accessories

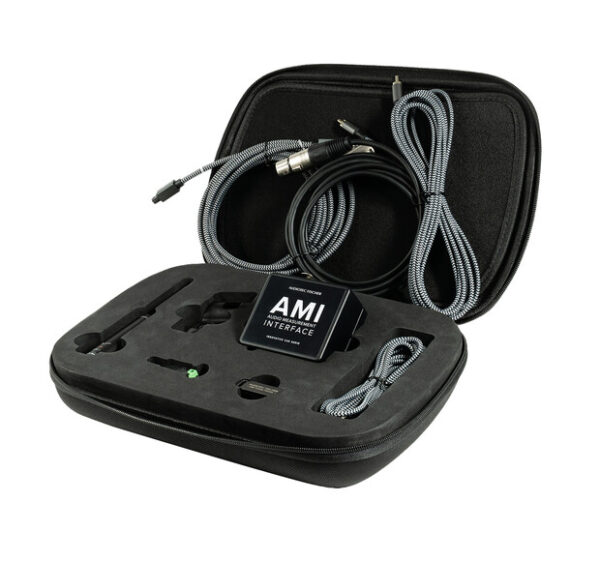

Alongside the AMI and the Beyerdynamic MM-1 microphone, the kit includes a full suite of high-quality accessories to ensure seamless operation in the field: a 3 m USB-C cable with USB-A adapter, a RCA cable with RCA-to-Highlevel adaptors, Toslink cable, and an XLR microphone cable. The 16 GB USB 3.0 flash drive preloaded with DSP tuning tracks rounds out the set. Powered via USB and packed in a durable, compact transport case, the AMI Tuning Kit offers maximum portability and convenience – whether in the workshop or directly inside the vehicle.

Kan restnoteras

Artikelnr: AMI TUNING KIT Kategorier: Atf, Tillbehör Varumärke: ATF

Inputs:
1 x Microphone input
1 x Line input

Microphone input specification

Frequency response:
12 Hz – 44 kHz (+/-1 dB)

Dynamic range:
95 dB (A-weighted)

Input sensitivity:
5 – 200 mV

Phantom power:
Yes (24 Volts)

Line input specification

Frequency response:
8 Hz – 44 kHz (+/-1 dB)

Dynamic range:
101 dB (A-weighted)

Input sensitivity:
max. 1 V / max. 40 V

Input impedance:
10 kOhms

Outputs:
2 x Line output
1 x Optical output (SPDIF)

Line output specification

Frequency response:
7 Hz – 44 kHz (+/-1 dB)

Dynamic range:
100 dB (A-weighted)

Maximum output voltage:
900 mV (RMS)

Minimum load:
5 kOhms

Loopback function:
Yes

General specification

Audio sampling rate:
96 kHz / 32 Bit

USB power consumption:
max. 250 mA

Supported operating systems:
Windows, macOS, iOS and Android

Microphone

Transducer principle:
Condenser (back-electret)

Operating principle:
Pressure receiver

Frequency response:
20 – 20,000 Hz (50 – 16,000 Hz ± 1.5 dB), diffuse-field equalized

Polar pattern:
Omnidirectional

Sensitivity (0 dB = 1 V/Pa)
15 mV/Pa (= -36.5 dBV) ± 1 dB

Nominal impedance:
160 Ω

Nominal load impedance:
≥ 2.2 kΩ

Maximum SPL (Sound Pressure Level)
122 dBSPL at f = 1 kHz, k = 1%, RL = 2.2 kΩ

Signal-to-noise ratio (related to 1 Pa)
57 dB

A-weighted equivalent noise level:
Approx. 26 dB(A)

Power supply:
12 – 48 V phantom power

Current consumption:
Approx. 1.9 mA

Output:
Electronically balanced

Compatibility:
DSP PC-Tool 6
DSP PC-Tool 5
DSP PC-Tool 4

Scope of delivery:
1 x AMI (Audio Measurement Interface)
1 x Beyerdynamic MM1 Microphone
1 x Microphone holder for tripod
1 x RCA-to-Highlevel adaptor
1 x 16 GB USB 3.0 flash drive with DSP tuning tracks
1 x 3.0 m / 9.85’ USB-C to USB-C cable with USB-A adaptor
1 x 3.5 m / 11.50’ optical toslink cable
1 x 3.5 m / 11.50’ mono RCA cable
1 x 2.0 m / 6.56’ XLR microphone cable

Vikt	3 kg
