’@ 4 Ohms 1 x 240 W RMS, 480 W Peak
@ 2 Ohms 1 x 410 W RMS, 820 W Peak
@ 1 Ohm 1 x 600 W RMS, 1200 W Peak
Amplifier technology Class D

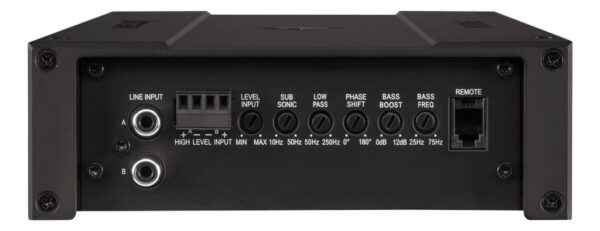

Inputs 2 x RCA
2 x Highlevel speaker input
1 x Remote In
1 x Remote control input
Input sensitivity RCA 0.5 – 6 Volts
Highlevel input sensitivity 1.1 – 13 Volts
Input impedance RCA 20 kOhms
Input impedance highlevel 13 Ohms
Outputs 1 x Speaker output
Frequency response 10 Hz – 250 Hz
Bass boost 0 – 12 dB @ 25 – 75 Hz
Lowpass 50 Hz – 250 Hz adjustable
Bandpass 10 Hz – 250 Hz adjustable
Subsonic 10 Hz – 50 Hz adjustable
Phase 0 – 180° adjustable
Slope subsonic & lowpass 12 / 24 dB/Oct.
Signal-to-noise ratio 95 dB (A-weighted)
Distortion (THD) 0.20 %
Damping factor 100
Operating voltage 10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current 650 mA

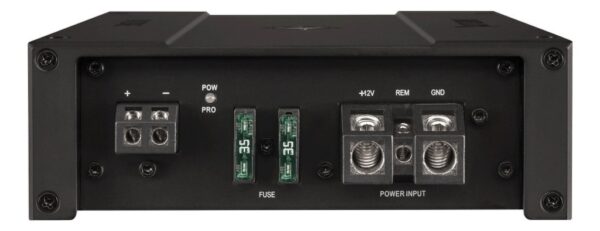

Fuse 2 x 35 A Maxi-fuse (APX)
Start-Stop capability
Highlevel input with automatic turn on function
Advanced Diagnostics Error Protection (ADEP)
Bass volume cable remote control
Dimensions (H x W x D) 50 x 230 x 154 mm
