Power RMS ≤ 1% THD+NNormal operation
(One amplifier)TwinPower Link
(Two amplifiers):
– @ 4 Ohms 1 x 400 Watts, TwinPower Link 1 x 1,400 Watts
– @ 2 Ohms 1 x 700 Watts, TwinPower Link 1 x 2,060 Watts
– @ 1 Ohm1 x 1,030 Watts
– Amplifier technologyClass D

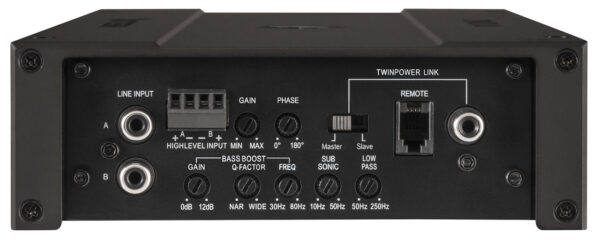

– Inputs2 x RCA / Cinch
– 2 x Highlevel speaker input
– 1 x Remote In
– 1 x Remote control input
– Input sensitivityRCA / Cinch 0.5 – 6 Volts
– Highlevel 1.1 – 13 Volts
– Input impedance RCA / Cinch20 kOhms
– Input impedance highlevel9 – 33 Ohms
– Outputs1 x Speaker output
– Frequency response 10 Hz – 250 Hz
– Bass boost 0 – 12 dB / 30 – 80 Hz
– Lowpass 50 Hz – 250 Hz adjustable
– Bandpass 10 Hz – 250 Hz adjustable
– Subsonic 10 Hz – 50 Hz adjustable
– Phase 0 – 180° adjustable
– Slope subsonic / lowpass 12 / 24 dB/Oct.
– Signal-to-noise ratio analog input 95 dB (A-weighted)
– Distortion (THD) 0.20 %
– Damping factor 150
– Operating voltage 10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
– Idle current 800 mA

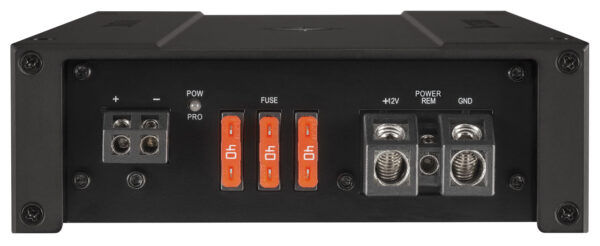

– Fuse 3 x 40 A Maxi-fuse (APX)
– Additional features: Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
– Dimensions (H x W x D) 50 x 320 x 154 mm.
