Match MEC ANALOG IN – UP 8DSP

990.00kr

Lägsta pris senaste 30 dagarna: 990.00kr.

MATCH MEC ANALOG IN
The MATCH Extension Card ANALOG IN extends MATCH products with two additional analog input channels. For example, the module allows to

provide MATCH DSP amplifiers with a lowlevel signal
upgrade OEM premium sound systems which require additional highlevel inputs
connect additional analog signal sources such as a TV or smartphone
Of course, the highlevel input provides our proprietary ADEP.3-circuit, the Auto Remote function as well as an adjustable input sensitivity from 1.5 to 30 Volts. Just as the highlevel input the 3.5 mm lowlevel stereo input offers an adjustable input sensitivity. The adjustment range is from 0.5 to 8 Volts. The module will be delivered with a device-specific side panel.

Kan restnoteras

Artikelnr: MEC ANALOG IN - UP 8DSP Kategori: Match Varumärke: Match

– Extends the amplifier by two additional analog input channels
– Highlevel input with ADEP.3 circuit, Auto Remote switch and an adjustable input voltage from 1.5 to 30 Volts
– Lowlevel stereo line input via 3.5 mm jack with an -adjustable input voltage range from 0.5 to 8 Volts
– Inputs can be freely configured via the DSP PC-Tool as additional Main Inputs or as an AUX source

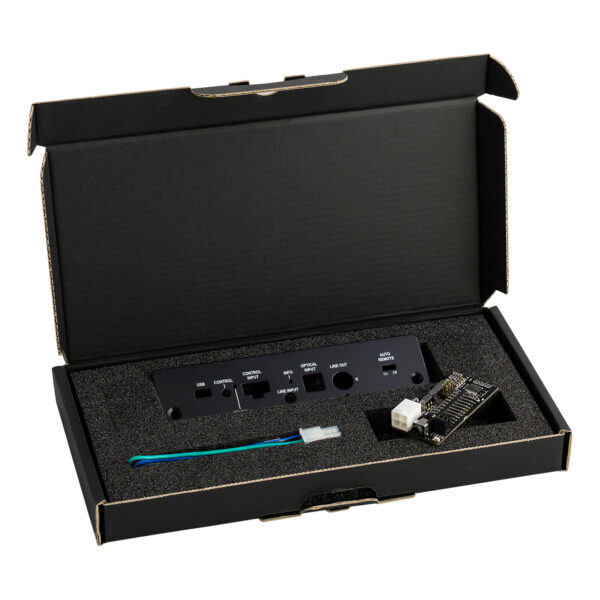

– Device-specific side panel included in delivery

Technical data:

Input voltage highlevel
1.5 – 30 Volts (adjustable)
Input voltage lowlevel
0.5 – 8 Volts (adjustable)
Lowlevel input
3.5 mm jack
Additional features
ADEP.3, Auto Remote function.
