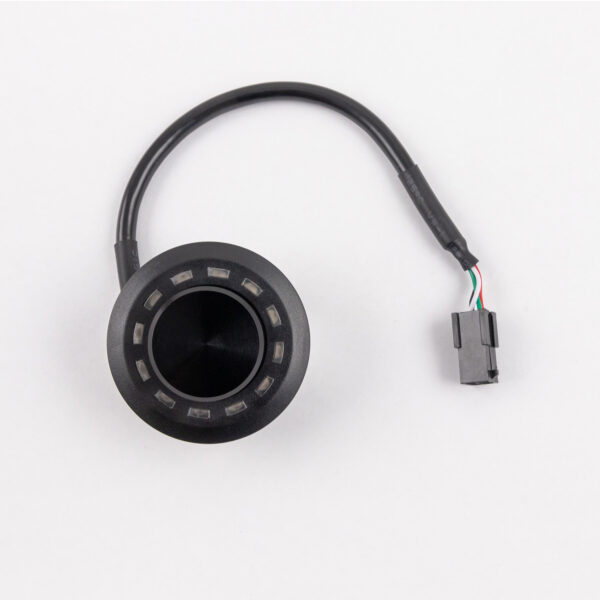

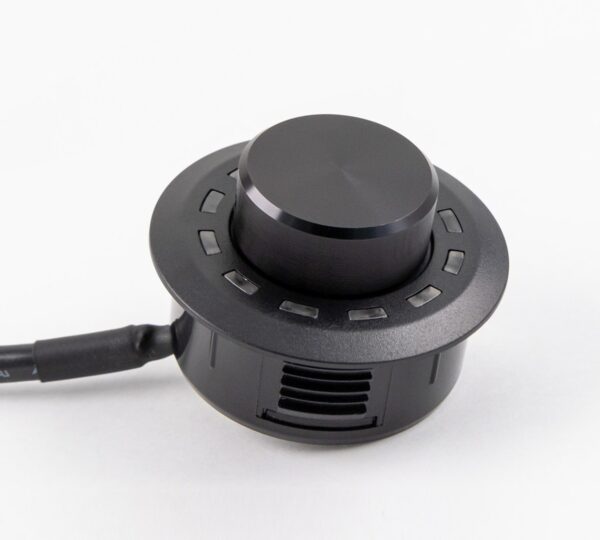

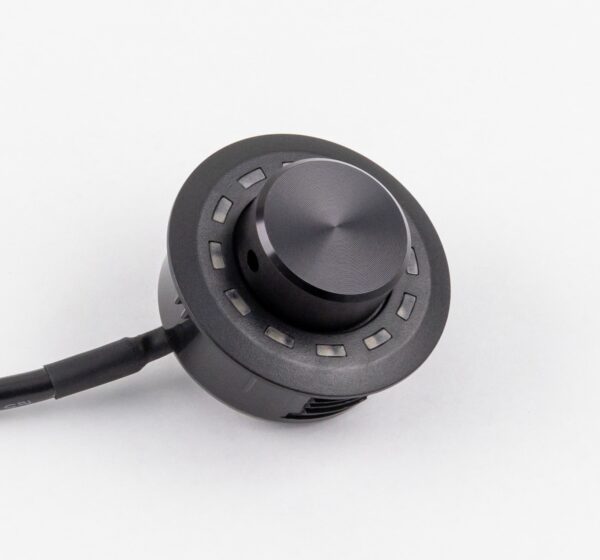

Housing: ABS housing with machined aluminum knob.
Hardware: Rotary encoder, 12 x RGB-LEDs &
48 MHz ARM processor.

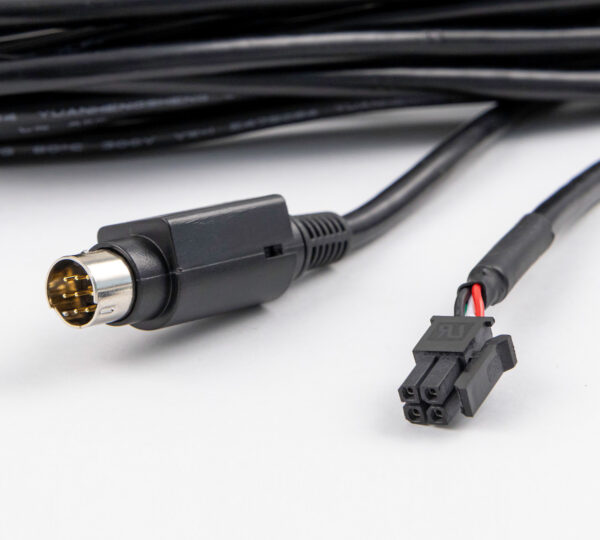

Connection: Single connector supply through
MiniDIN or NanoFit.
Cable length: 5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable.

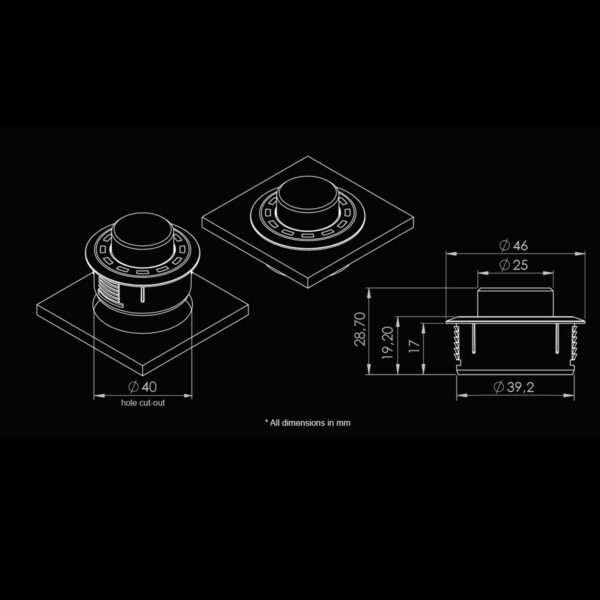

Dimensions: (Ø x H) Ø 46 x 28.7 mm /
Ø 1.81 x 1.13”

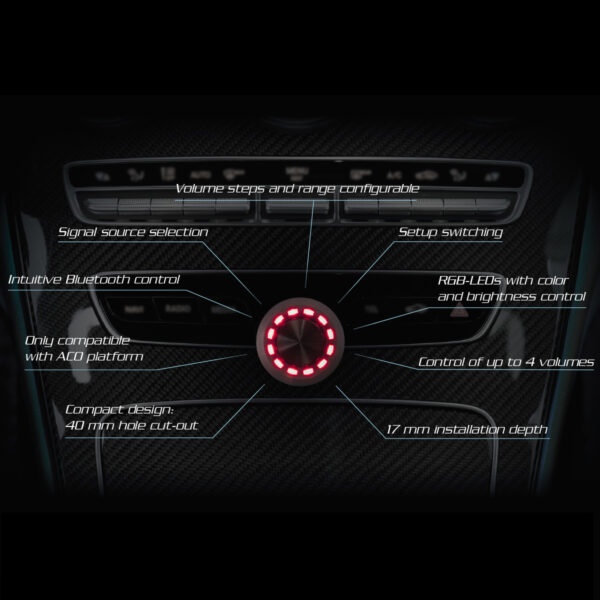

Up to 4 individual volume menus configurable
(Master, Digital, HEC/AUX, Subwoofer, Rear Att.)
• Volume range selectable (60 dB, 24 dB, 12 dB).
• Volume steps selectable (1 dB steps, 0.5 dB steps).
• Individual color for each volume menu configurable.
Sound Setup selection between all 10 memory slots.
Intuitive Bluetooth playback control and pairing activation
(only for Bluetooth Extension Card).

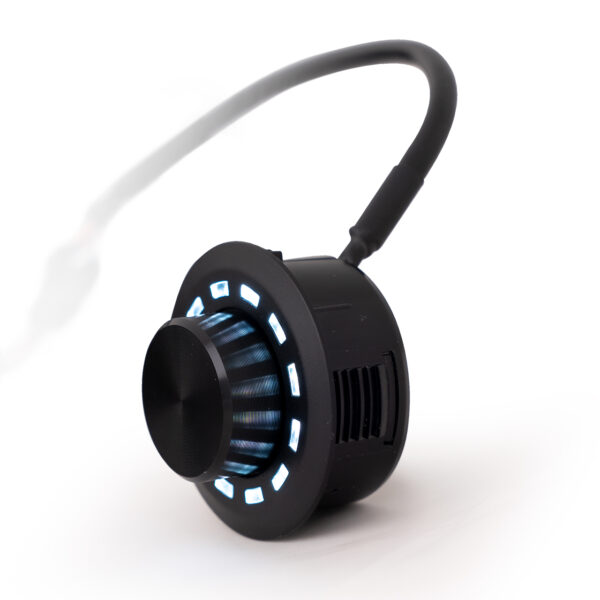

12 x RGB-LEDs for visual feedback.

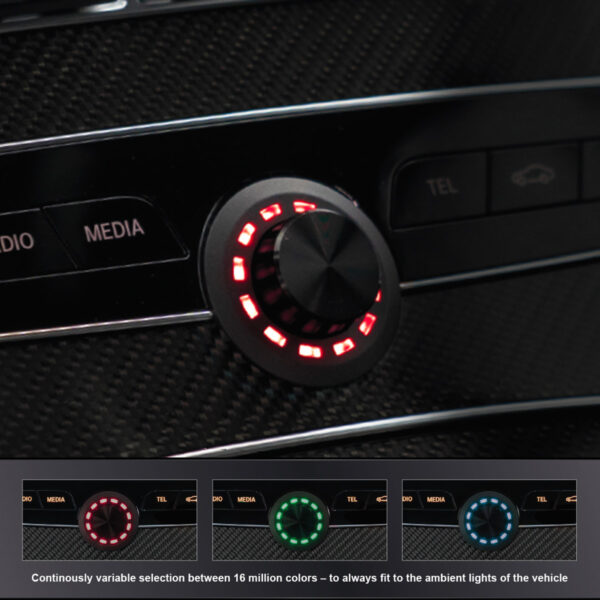

• Wide color space with over 16 million colors.
• Brightness and automatic dimming function
• Flush mount installation with Ø 40 mm hole cut-out.

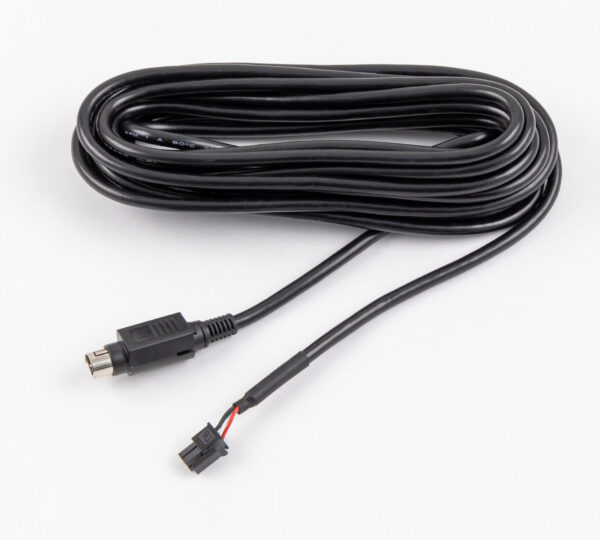

• 5 m cable harness with split connector and single
• Optional housing for on-dash installation available
Full configuration and updatability through the DSP PC-Tool software.
DSP PC-Tool 4.75a or higher.
HELIX DSP ULTRA
V TWELVE DSP
V EIGHT DSP MK2
MATCH M 5DSP MK2
Note: The CONDUCTOR is not compatible with the WIFI CONTROL or the DIRECTOR.
