Audiotec Fischer Helix DSP.3S
/
/
Audiotec Fischer Helix DSP.3S

Audiotec Fischer Helix DSP.3S

4990.00kr

The HELIX DSP.3S is our new definition of the standard for digital signal processors. Continuously refined, this 8-channel DSP presents numerous improvements in detail. Besides the obligatory optical digital input, an additional coaxial digital input now provides the best conditions for connecting high-resolution signal sources with a sampling frequency of up to 192 kHz. Most advanced technology for ultimate High-Res sound experience The 64 Bit audio DSP of the latest Sigma350 generation and a throughout, native high resolution signal processing with 96 kHz sampling rate as well as A/D and D/A signal converters from BurrBrown provide outstanding sound quality. This makes the DSP.3S perfectly prepared for processing High-Res audio signals with a bandwidth of more than 40 kHz

2 i lager (kan restnoteras)

Artikelnr: HELIX-DSP.3S Kategori:

Beskrivning

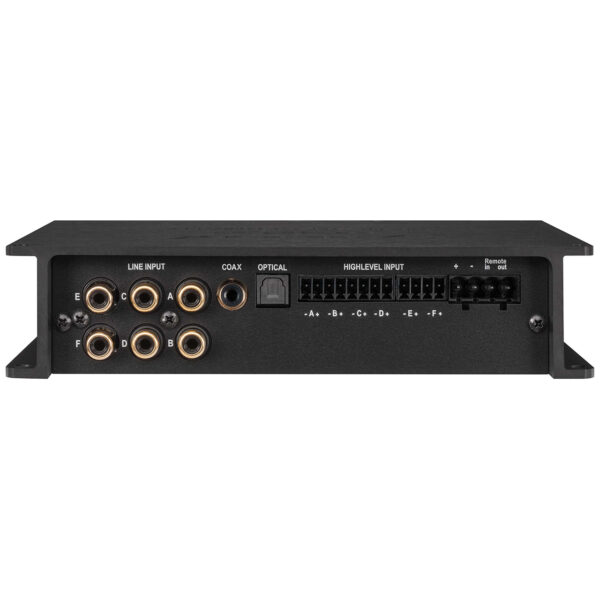

Inputs 6 x RCA / Cinch
6 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Coax SPDIF (12 – 192 kHz)
1 x Remote In
Input sensitivity RCA / Cinch 2 – 4 Volts
Highlevel 5 – 11 Volts

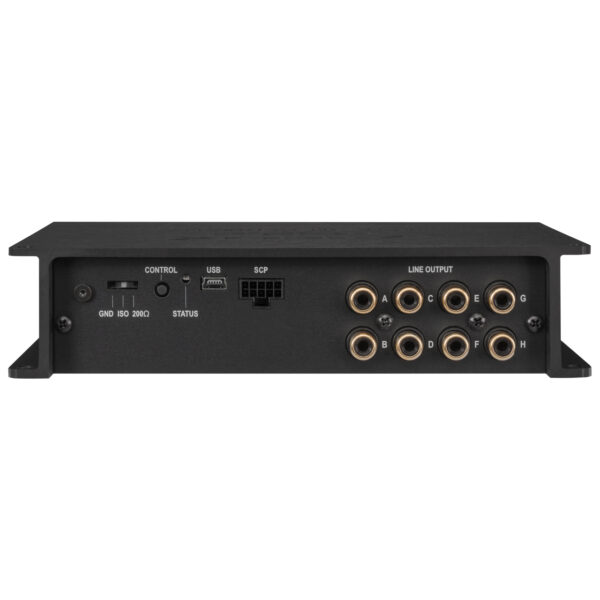

Outputs 8 x RCA / Cinch
1 x Remote Out
Output voltage 6 Volts
Frequency response 10 Hz – 44,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 96 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 112 dB (A-weighted)
Signal-to-noise ratio analog input 107 dB (A-weighted)
Total harmonic distortion (THD+N) digital input 0.0008 %
Total harmonic distortion (THD+N) analog input 0.002 %
IM distortion (IMD) digital input 0.003 %
IM distortion (IMD) analog input 0.005 %
Crosstalk 90 dB
Operating voltage 9.6 – 17 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 3 A max.
Current draw 450 mA
Max. remote output current 500 mA
Additional features HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D) 40 x 177 x 120 mm /
1.58 x 6.97 x 4.72”

Mer information

Vikt 3 kg
