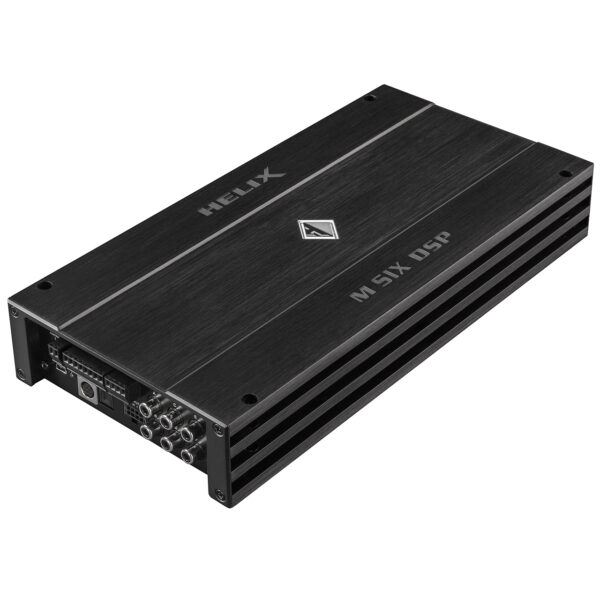

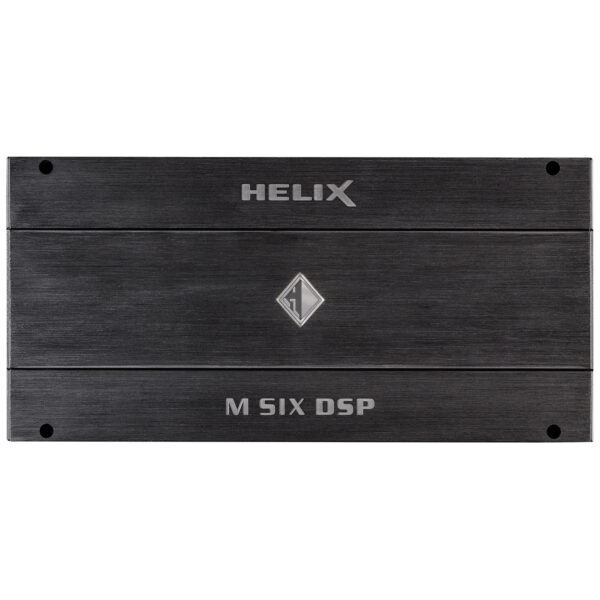

That rocks – the new M SIX DSP The M SIX DSP is more than “just” another six-channel amplifier – rather, despite its small dimensions, you are dealing with a powerful control center that has not less than a total of ten processed DSP channels. In addition, the amplifier delivers plentiful output power with generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load. Finally its awesome price performance ratio in combination with the fantastic feature set will ensure bright eyes. Tonally absolutely HELIX! Compromises in terms of sound quality have no place in a HELIX product – and that′s why the M SIX DSP is equipped with all the finesse for perfect sound. Of course, excellent and separate A/D and D/A converters are just as natural as on the DSP circuit board, which is completely manufactured in Germany, you will find only excellent, separate A/D and D/A converters as well as an extremely powerful DSP from Analog Devices. In addition, the four pre-amplifier outputs with 6 Volts output voltage provide more than enough level to drive any additional amplifier. Maximum flexibility Even the internal amplifier section of the M SIX DSP is extremely variable – it can either be operated in 6-channel mode or, thanks to its bridging capability, can also be configured as a 5-channel, 4-channel or even 3-channel amplifier. But that′s not all – in connection with the four pre-amplifier outputs, the sound system can be expanded in a diverse manner and upgraded to up to 10 channels. In combination with other amplifiers of the M series (M ONE X, M ONE, M FOUR or M SIX), there are more than enough possibilities to expand the number of power channels

1 i lager (kan restnoteras)

Artikelnr: HELIX M SIX DSP Kategorier: ,


– @ 4 Ohms 6 x 100 Watts
– @ 2 Ohms 6 x 100 Watts
– @ 1 Ohm –
– bridged @ 4 Ohms 3 x 200 Watts
– bridged @ 2 Ohms –
Max. output power per channel* Up to 130 Watts RMS @ 4 / 2 Ohms
Amplifier technology Class D

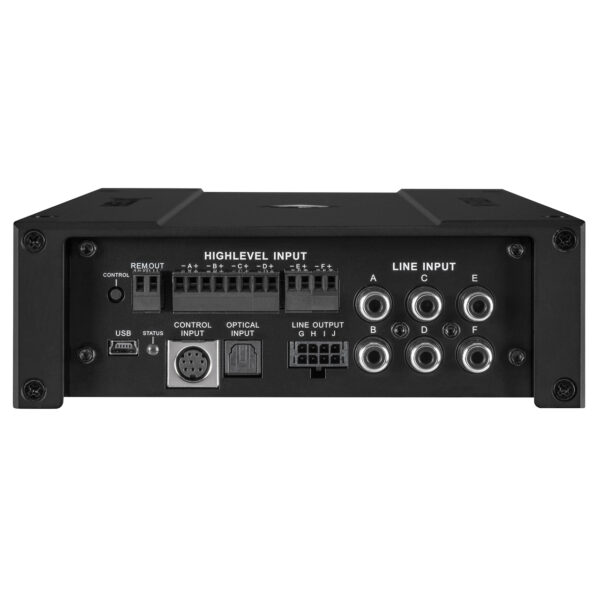

Inputs 6 x RCA / Cinch
6 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Remote In
Input sensitivity RCA / Cinch 1 – 4 Volts
Highlevel 5 – 20 Volts
Input impedance RCA / Cinch 22 kOhms
Input impedance highlevel 9 – 33 Ohms or 20 kOhms

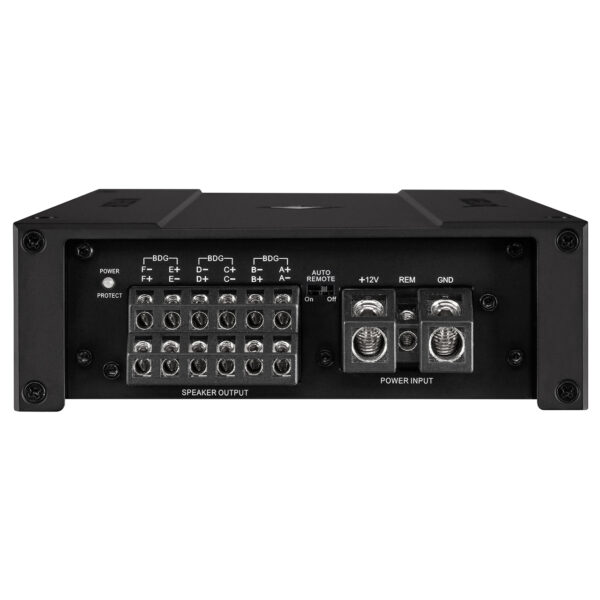

Outputs 6 x Speaker output
4 x RCA / Cinch
2 x Remote Out
Output voltage RCA / Cinch 6 Volts
Frequency response 20 Hz – 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
DSP type Audio signal processor
Signal-to-noise ratio digital input 105 / 108 dB Speaker / Line Output (A-weighted)
Signal-to-noise ration analog input 102 / 105 dB Speaker / Line Output (A-weighted)
Distortion (THD) 0.03 / 0.005 % Speaker / Line Output
Damping factor 100
Operating voltage 10.5 – 16 Volts (max. 5 sec.down to 6 Volts)
Idle current 1950 mA
Max. remote output current 500 mA
Fuse 2 x 35 A Maxi-fuse (APX)
Power rating DC 12 V ⎓ 80 A max.
Additional features ADEP.3 circuit, Auto Remote switch, 32 Bit CoProcessor, Control Input
Dimensions (H x W x D) 50 x 320 x 154 mm /
2.00 x 12.60 x 6.06”

Mer information

Vikt 4 kg
