Beskrivning
Output power RMS / max.
– @ 4 Ohms 6 x 100 / 200 Watts
– @ 2 Ohms 6 x 100 / 200 Watts
– @ 1 Ohm –
– bridged @ 4 Ohms 3 x 200 / 400 Watts
– bridged @ 2 Ohms –
Amplifier technology Class D

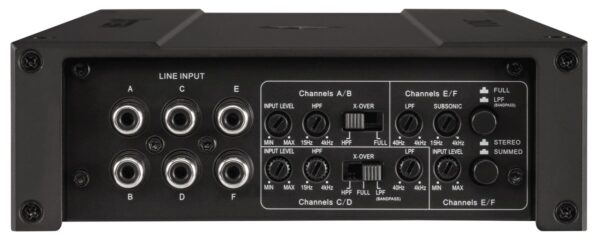

Inputs 6 x RCA / Cinch
1 x Remote In
Input sensitivity RCA / Cinch 0.5 – 6 Volts
Input impedance RCA / Cinch 20 kOhms
Input impedance highlevel –

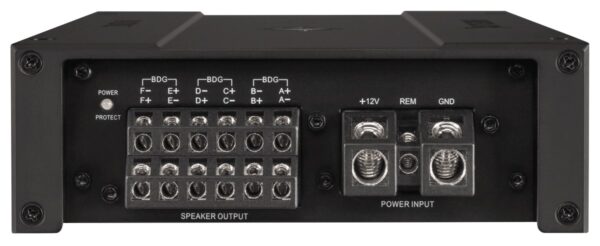

Outputs 6 x Speaker output
Output voltage RCA / Cinch –
Signal converter for digital input –
Frequency response 10 Hz – 30,000 Hz
Bass boost –
Highpass 15 Hz – 4,000 Hz adjustable
Lowpass 40 Hz – 4,000 Hz adjustable
Bandpass 15 Hz – 4,000 Hz adjustable
Subsonic / HPF
15 Hz – 4,000 Hz adjustable
Phase –
Slope high- / lowpass 12 dB/Oct.
Slope subsonic / lowpass –
Signal-to-noise ratio digital input –
Signal-to-noise ratio analog input 98 dB (A-weighted)
Distortion (THD) 0.05 %
Damping factor 100
Operating voltage 10.5 – 16 Volts (max. 5 sec. down to 6 Volts)
Idle current 1,550 mA
Fuse 2 x 35 A Maxi-fuse (APX)
Additional features Active, adjustable crossover, subsonic input mode switch channel E / F, subsonic, Start-Stop capability
Dimensions (H x W x D) 50 x 320 x 154 mm /
2.00 x 12.60 x 6.06”
