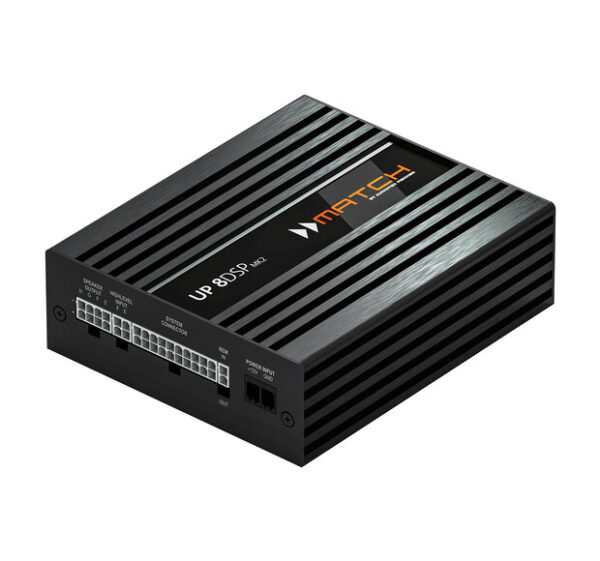

Match UP 8DSP MK2

7490.00kr

The powerhouse with smart integration for your sound system
The MATCH UP 8DSP MK2 combines a powerful 8-channel Class GD amplifier with an integrated 9-channel DSP, delivering power and dynamics for an outstanding hi-fi upgrade while maintaining clean, OEM-friendly integration in the vehicle. In the MK2 generation, the concept has been further refined and adds key updates with a USB-C port and the Extension Card 2.0 slot for contemporary, expandable system integration.

Seamless integration and strong performance in a compact format
For optimal integration into existing factory systems, the UP 8DSP MK2 provides six highlevel inputs to tap the OEM speaker signals (including ADEP.3 for reliable interfacing with many factory head units), plus an optical digital input for integrating digital sources.

On the output side, it offers eight amplifier channels: 6 x 65 Watts RMS @ 4 Ω as well as two powerful subwoofer outputs with up to 2 x 90 / 160 Watts RMS @ 4 / 2 Ω maximum output power, combined with 9 processed DSP channels for precise signal processing and flexible sound tuning.

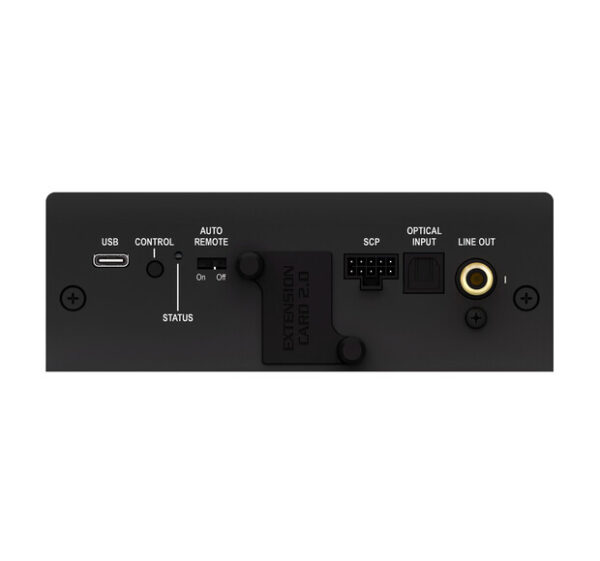

This combines performance and connectivity in a compact, space-saving design and adds further expandability in the MK2 generation: the new Extension Card 2.0 slot is included, a revised expansion system with a screw-secured plastic cover and cross-series compatibility. This allows modular expansion of the system integration when required, for example with Bluetooth® HD or additional analog or digital inputs. The USB-C port also enables modern access via DSP PC-Tool.

Kan restnoteras

Technical data
Power RMS ≤ 1% THD+N
– @ 4 Ohms Channels A – F: 65 Watts (min. 3 Ohms*)
Channels G – H: 75 Watts (min. 3 Ohms*)
– @ 2 Ohms Channels G – H: 125 Watts
– @ 1 Ohm –
– bridged @ 4 Ohms –
– bridged @ 2 Ohms –
Max. output power per channel** Channels A – F: up to 80 Watts RMS @ 4 Ohms
Channels G – H: up to 90 Watts RMS @ 4 Ohms
Channels G – H: up to 160 Watts RMS @ 2 Ohms
Amplifier technology Class GD
Inputs 6 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Extension Card 2.0
Input sensitivity 2.8 – 11 Volts
Input impedance RCA / Cinch –
Input impedance highlevel 9 – 33 Ohms with ADEP.3

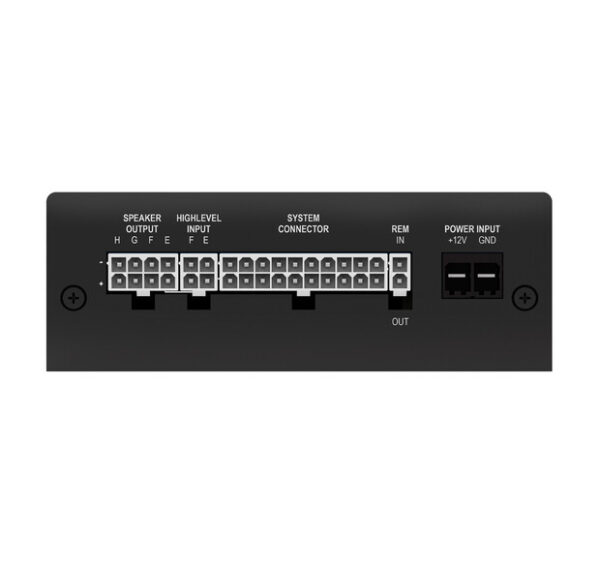

Outputs 8 x Speaker output
1 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch 3 Volts RMS
Frequency response 15 Hz – 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 104 dB (A-weighted)
Signal-to-noise ratio analog input 100 dB (A-weighted)
Distortion (THD @ 1 kHz, 1 W into 4 Ohms) 0.015 %
Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) 0.02 %
Distortion (THD @ 100 Hz, 1 W into 4 Ohms) –
Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) –
Operating voltage 10.5 – 18 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 40 A max.
Idle current 380 mA
Max. remote output current 500 mA
Operating temperature range -40° C to +70° C
Fuse 2 x 25 A LP-Mini-fuse (APS)
Additional features Class GD technology with dynamically controlled power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB-C, Auto Remote switch
Dimensions (H x W x D) 46 x 130 x 153 mm /
1.81 x 5.12 x 6.02″
* DC resistance min. 3.0 Ohms
** In typical multi-channel applications

Scope of delivery
1 x MATCH UPGRADE amplifier UP 8DSP MK2
4 x Connection cable
1 x Power Input connector
1 x Mounting plates & material
1 x USB cable
1 x Instruction manual
